Rio-Carb
  • Fits 100% every time!
  • No fitting problems
  • Cannot come loose
  • No edge gaps
  • Weld-on studs also available

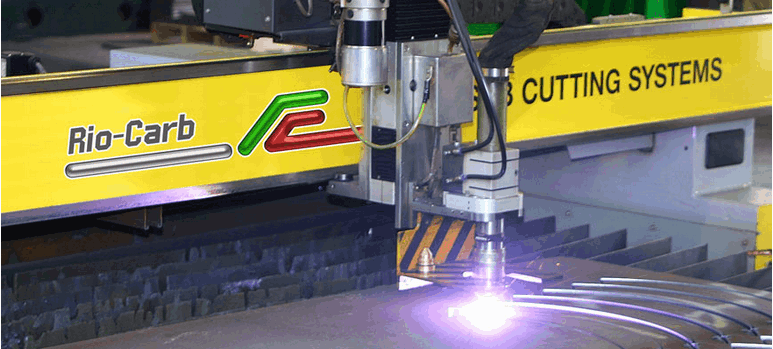

  • Studs and countersunk holes plasma placed with N.C accuracy
  • Edge at 90°.
  • Minimal gaps.
  • Sized to ½ mm.
  • Holes or studs positioned to 1mm.
  • Repeatable to ½mm.
  • Each liner Plasma Engraved with Part Number.
  • Thickness to ½mm.
  • Flatness to 1mm overall.
  • Ultra smooth countersunk holes with machined inserts also available

Specifications. CrC Liners

  • Specifications. CrC Liners
  • All dimensions within ½mm
  • All holes within ½mm accuracy
  • Flatness within 2mm over 500mm
  • With MaxCS™ and *Hi.P.P. *Hi Precision Plasma
  • Rio-Carb's unique deposit process and bead-bonding, eliminates the "direction of flow" problem
  • Can also be cut with AquaJet Water Process for very accurate requirements i.e. Fan Blades
